Flexible Cable Mesh Details
Quick Details：
Place of Origin: China (Mainland)
Brand Name: Hengyi
Product ID: HY1676
Type: Flexible cable mesh
Material: AISI 304/316 Steel
Rope diameter: 1.6mm (1/16")
Rope structure: 7*7 cores
Mesh aperture: 76mm (3 " x 3")
Technology: Hand woven
Color: Narural/ Black/Bronze
Panel (L × W): Customized
Application: Enclosure fence
Wire Rope Mesh For Protection System:
● Pure hand-woven
● Light weight but strong and durable
● Tensile strength, breaking strong
● Flexible, soft, corrosion-resistant, no rust, maintenance-free, long service life
● Beautiful, good sight, pollution-free, environmentally friendly
● Wide range of applications, can be installed without restrictions on the shape
● Suitable for all kinds of environments
● Customized products
Natural state & Installation Finished State -stainless steel mesh
Mesh aperture:
● Mesh aperture is the mesh hole size, is the distance from knot center to knot center.
● Flexible cable mesh is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant.
● Hand woven stainless steel netting mesh aperture is diverse, the mesh HY1676 — mesh aperture is 3"×3"(76mm×76mm).
● We accept custom mesh size, whether so large, so small, our steel mesh can be very suit your design.
Wire rope diameter of HY1676:
● The wire rope diameter is 1/16"(1.6mm)
● The wire rope structure is 7 x 7
● The Min.breaking load (KN) is 2.17KN
Material:
● Hand-woven stainless steel mesh choose high quality stainless steel wire rope, material AISI304 or AISI316;
● In general, the material AISI 304 is the main material, can meet the needs of most areas, and the AISI316 material mainly used for wet environment, like seaside.
Product applications:
The application of Flexible cable mesh HY1676 is very wide, due to it has Strong tensile strength, flexibility and long service life characteristic, mainly applies in the bird netting, animal enclosure, building decorative mesh and safety protective netting.

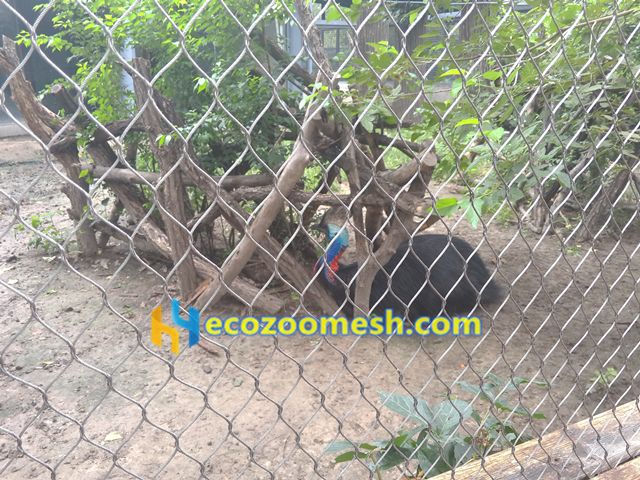

The left case picture is the stainless steel zoo fence mesh used for bird exhibit enclosure mesh.
Addition, the stainless steel rope fence mesh is also widely used for variety of zoo animal cages protection, such as: bird aviary netting, bird cage covered mesh, crane fencing, peacock enclosure mesh, crane cage netting, monkey enclosure mesh, deer fence mesh, etc.
