Stainless Steel Wire Rope Mesh


Stainless steel wire rope mesh is hand-woven or ferruled with Material 304 or 316 stainless steel ropes by molds. It is a creative zoo enclosure construction material that perfectly replaces the fences and bars used in zoological gardens, so it is called zoo mesh by clients.
Stainless steel wire rope mesh for enclosure fences (alternate names: stainless steel cable mesh, flexible metal mesh, stainless steel wire rope woven mesh, stainless steel knotted netting, stainless steel wire rope ferrule mesh, hand-woven stainless steel mesh, cable woven mesh, cable ferrule mesh, animal enclosure mesh, stainless steel wire rope woven mesh, handwoven multiple wire mesh).


Hengyi Metal Mesh is a stainless steel wire mesh manufacturer from China, being a professional stainless steel netting supplier. We are the zoo fence enclosures factory supplier. Cable woven mesh and ferrule wire mesh are more robust and durable than other metal wire mesh, while at a direct factory price. Our zoo mesh products are widely used in zoos and therefore referred to by our customers as Zoo mesh. Stainless steel wire rope mesh and wire ferrule mesh are known as zoo fence, enclosure fence & birds aviary mesh and so on.

Stainless steel cable mesh enclosures zoo fencing produced by Hengyi is safety-certified, simple in structure, easy to install, beautiful in appearance, highly durable, and maintenance-free (alternate names: hand-woven stainless steel netting, stainless steel wire mesh, flexible metal mesh, stainless steel wire rope mesh, stainless steel knotted netting, handwoven multiple wire mesh).

It is widely used in zoos, safari parks, ecological parks, bird habitats, wildlife parks, etc. Whether it is in Eruope, the Middle East, or the Americas, the application of stainless steel rope mesh has been recognized by more and more experts. It can fit almost all the needs in the zoological. It can be the perimeter fence of large outdoor animal enclosures; it also can be the sky roof of the flight aviary. It functions well in animal tunnel mesh system.

Zoo mesh's reliable strength, flexible shape, and long service life have been recognized by more and more zoo enclosure designers, and there are many successful experiences for later reference.

ROPE MESH

The main product of Hengyi Metal Mesh is the sleeveless stainless steel rope mesh(cable woven mesh) and wire rope ferrule mesh, which can withstand more pressure. Therefore, the stainless steel rope mesh is lighter, more transparent, and more beautiful.

Because of these characteristics, more and more zoos have begun to use sleeveless stainless steel rope mesh and sleeved stainless steel rope mesh as zoo fences.

Compared with the common enclosure, the stainless steel netting enclosure has better ventilation and light transmission. It has good elasticity and toughness and high resistance to breaking. Compared with other metal mesh products, the stainless steel rope zoo fence is lighter and thinner, making the animal's living environment more open and natural.


Stainless steel wire rope mesh has better shape plasticity (adaptation) and can be deployed in designs of more shapes.

The support structure of the stainless steel knotted netting can be a steel tower or an arched steel frame, and a steel cable can also be used. It can also be fixed directly between the ground and the roof.

Stainless steel rope mesh seems to be unrestricted in the application of architectural solutions, never-ending.
  • 1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight.
  • 2. Flexibility: the smooth mesh surface can get in close contact with animal’s fur and feather without damaging them and meanwhile guarantees enough tensile strength.
  • 3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo’s operating costs. One-time investment provides permanent use—its comprehensive profits outperform other competitive products greatly.
  • 4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.
See more about PAGE•Stainless Steel Wire Rope Mesh Details

ZOO MESH FENCE


Specifications of Stainless steel wire rope mesh

Rope diameter, Mesh aperture, and Mesh panel size can all be customized. We will produce according to your requirements.

Hengyi Metal Mesh designs and produces stainless steel wire woven mesh & cable ferrule mesh, suitable for zoo animal enclosure fence, birds aviary mesh, stadium fence, safety protection nets, zoo fencing, enclosure mesh, and so on.

Stainless steel wire rope mesh by pure manual processing production, after a variety of processing technology. It is luxurious in appearance, highly durable, and long-lasting.

▼Details of Products Specifications

The specification name of stainless steel wire mesh is composed of the wire rope diameter and the mesh aperture.

For example:
      HY1251
     Rope diameter: 1.2mm (3/64")
     Mesh aperture: 51mm × 51mm (2" × 2")

The wire rope diameter is 1.2 mm; When the opening angle of each mesh is 90°, the distance between the two parallel ropes is the standard rope diameter. Shown as the "X" in the picture. In this example, X = 51mm.
>Wire rope diameter:
          By inch: 3/64", 1/16", 5/64", 3/32", 1/8", 5/32"
          By mm: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm
>Mesh aperture:
          By inch: 0.8"×0.8", 1"×1", 1.2"×1.2", 1.5"×1.5", 2"×2", 2.4"×2.4", 3"×3", 3.6"×3.6", 4"×4", 5"×5", 6"×6".
          By mm: 20mm×20mm, 25mm×25mm, 30mm×30mm, 38mm×38mm, 51mm×51mm, 60mm×60mm,76mm×76mm, 90mm×90mm, 102mm×102mm, 127mm×127mm, 152mm×152mm

More about Stainless steel cable mesh Composition Specifications

Details Gallery of Stainless steel wire rope mesh


Regular Specifications

Zoo mesh, the rope diameter, material and mesh size can all be customized. We will produceaccording to your requirements. Stainless steel rope mesh (alternate names: hand-woven stainless steel netting, stainless steelcable mesh, flexible metal netting, stainless steel wire rope mesh).
We use SUS304/304L/316/316L stainless steel wire ropes, which has strong corrosion resistanceand tensile strength.
The rope is made with multiple cores twisted together, the structure is: 7*7 cores (rope diameter1.2mm, 1.6mm, 2.0mm, 2.4mm) and 7*19 cores (rope diameter 3.2mm, 4.0mm).Wire ropes are smooth, protecting the fur from being damaged. We provide the regularspecifications for your reference.

Product IDRope DiameterApertureRope DiameterApertureUnit Weight
Unit WeightWire Rope StructureTensile StrengthWire DiameterMin.Breaking Load
HY12151.2(mm)15 x 15 (mm)3/64"(Inch)0.6" x 0.6"(Inch)0.92(kg/m²)0.085(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY12201.2(mm)20 x 20 (mm)3/64"(Inch)0.8" x 0.8"(Inch)0.7(kg/m²)0.065(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY12251.2(mm)25.4 x 25.4 (mm)3/64"(Inch)1" x 1"(Inch)0.53(kg/m²)0.049(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1230
1.2(mm)30 x 30 (mm)3/64"(Inch)1.2" x 1.2"(Inch)0.45(kg/m²)0.042(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1238
1.2(mm)38 x 38 (mm)3/64"(Inch)1.5" x 1.5"(Inch)0.37(kg/m²)0.034(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1251
1.2(mm)51 x 51 (mm)3/64"(Inch)2" x 2"(Inch)0.26(kg/m²)0.024(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1260
1.2(mm)60 x 60 (mm)3/64"(Inch)2.4" x 2.4"(Inch)0.23(kg/m²)0.021(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1276
1.2(mm)76 x 76 (mm)3/64"(Inch)3" x 3"(Inch)0.19(kg/m²)0.018(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1290
1.2(mm)90 x 90 (mm)3/64"(Inch)3.6" x 3.6"(Inch)0.17(kg/m²)0.016(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY12102
1.2(mm)102 x 102(mm)3/64"(Inch)4" x 4"(Inch)0.15(kg/m²)0.014(kg/sq.ft)7 x 72030(Mpa)0.135 (mm)1.2 (KN)
HY1625
1.6(mm)25.4 x 25.4 (mm)1/16"(Inch)1" x 1"(Inch)1(kg/m²)0.093(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY16301.6(mm)30 x 30 (mm)1/16"(Inch)1.2" x 1.2"(Inch)0.9(kg/m²)0.084(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY1638
1.6(mm)38 x 38 (mm)1/16"(Inch)1.5" x 1.5"(Inch)0.64(kg/m²)0.059(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY1651
1.6(mm)51 x 51 (mm)1/16"(Inch)2" x 2"(Inch)0.5(kg/m²)0.046(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY1660
1.6(mm)60 x 60(mm)1/16"(Inch)2.4" x 2.4"(Inch)0.45(kg/m²)0.042(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY1676
1.6(mm)76 x 76(mm)1/16"(Inch)3" x 3"(Inch)0.37(kg/m²)0.034(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY1690
1.6(mm)90 x 90(mm)1/16"(Inch)3.6" x 3.6"(Inch)0.32(kg/m²)0.03(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY16102
1.6(mm)102 x 102(mm)1/16"(Inch)4" x 4"(Inch)0.24(kg/m²)0.022(kg/sq.ft)7 x 72300(Mpa)0.17 (mm)2.13 (KN)
HY2038
2(mm)38 x 38(mm)5/64"(Inch)1.5" x 1.5"(Inch)1.03(kg/m²)0.096(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY2051
2(mm)51 x 51(mm)5/64"(Inch)2" x 2"(Inch)0.76(kg/m²)0.071(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY2060
2(mm)60 x 60(mm)5/64"(Inch)2.4" x 2.4"(Inch)0.65(kg/m²)0.06(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY2076
2(mm)76 x 76(mm)5/64"(Inch)3" x 3"(Inch)0.51(kg/m²)0.047(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY2090
2(mm)90 x 90(mm)5/64"(Inch)3.6" x 3.6"(Inch)0.45(kg/m²)0.042(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY20102

2(mm)102 x 102(mm)5/64"(Inch)4" x 4"(Inch)0.4(kg/m²)0.037(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY20127
2(mm)127 x 127(mm)5/64"(Inch)5" x 5"(Inch)0.3(kg/m²)0.028(kg/sq.ft)7 x 72080(Mpa)0.22 (mm)2.94 (KN)
HY2451
2.4(mm)51 x 51(mm)3/32"(Inch)2" x 2"(Inch)1.02(kg/m²)0.095(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY2460
2.4(mm)60 x 60(mm)3/32"(Inch)2.4" x 2.4"(Inch)0.87(kg/m²)0.081(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY2476
2.4(mm)76 x 76(mm)3/32"(Inch)3" x 3"(Inch)0.72(kg/m²)0.067(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY2490
2.4(mm)90 x 90(mm)3/32"(Inch)3.6" x 3.6"(Inch)0.6(kg/m²)0.056(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY24102
2.4(mm)102 x 102(mm)3/32"(Inch)4" x 4"(Inch)0.54(kg/m²)0.05(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY24127
2.4(mm)127 x 127(mm)3/32"(Inch)5" x 5"(Inch)0.42(kg/m²)0.039(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY24152
2.4(mm)152 x 152(mm)3/32"(Inch)6" x 6"(Inch)0.35(kg/m²)0.033(kg/sq.ft)7 x 71860(Mpa)0.26 (mm)4.1 (KN)
HY3251
3.2(mm)51 x 51(mm)1/8"(Inch)2" x 2"(Inch)1.95(kg/m²)0.181(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY3260
3.2(mm)60 x 60(mm)1/8"(Inch)2.4" x 2.4"(Inch)1.65(kg/m²)0.153(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY3276
3.2(mm)76 x 76(mm)1/8"(Inch)3" x 3"(Inch)1.28(kg/m²)0.119(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY3290
3.2(mm)90 x 90(mm)1/8"(Inch)3.6" x 3.6"(Inch)1.1(kg/m²)0.102(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY32102
3.2(mm)102 x 102(mm)1/8"(Inch)4" x 4"(Inch)0.9(kg/m²)0.084(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY32127
3.2(mm)127 x 127(mm)1/8"(Inch)5" x 5"(Inch)0.7(kg/m²)0.065(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY32152
3.2(mm)152 x 152(mm)1/8"(Inch)6" x 6"(Inch)0.61(kg/m²)0.057(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY32203
3.2(mm)203 x 203(mm)1/8"(Inch)8" x 8"(Inch)0.43(kg/m²)0.04(kg/sq.ft)7 x 191920(Mpa)0.21 (mm)7.82 (KN)
HY4076
4(mm)76 x 76(mm)5/32"(Inch)3" x 3"(Inch)1.9(kg/m²)0.177(kg/sq.ft)7 x 191880(Mpa)0.24 (mm)10.2 (KN)
HY4090
4(mm)90 x 90(mm)5/32"(Inch)3.6" x 3.6"(Inch)1.7(kg/m²)0.158(kg/sq.ft)7 x 191880(Mpa)0.24 (mm)10.2 (KN)
HY40102
4(mm)102 x 102(mm)5/32"(Inch)4" x 4"(Inch)1.5(kg/m²)0.139(kg/sq.ft)7 x 191880(Mpa)0.24 (mm)10.2 (KN)
HY40127
4(mm)127 x 127(mm)5/32"(Inch)5" x 5"(Inch)1.15(kg/m²)0.107(kg/sq.ft)7 x 191880(Mpa)0.24 (mm)10.2 (KN)
HY40152
4(mm)152 x 152(mm)5/32"(Inch)6" x 6"(Inch)1(kg/m²)0.093(kg/sq.ft)7 x 191880(Mpa)0.24 (mm)10.2 (KN)
HY402034(mm)203 x 203(mm)5/32"(Inch)8" x 8"(Inch)0.75(kg/m²)0.07(kg/sq.ft)7 x 191880(Mpa)0.24 (mm)10.2 (KN)

Stainless steel wire rope mesh Applications

It is widely used for animal enclosure fence in zoological gardens, zoo mesh, animals enclousre fence, enclosure fence mesh, bird netting, aviary mesh panels, deer enclosure fencing mesh, animals barrier, etc.(alternate names: hand-woven stainless steel netting, stainless steel cable mesh, flexible metal netting, stainless steel wire rope mesh)

Birds netting mesh & Aviary mesh panel

Zoo mesh, Commonly used bird nettings fall into two categories according to purposes: walk-in aviary and birds aviary mesh panels.
Regular specifications: rope diameter 1.2mm, 1.6mm, 2.0mm, 2.4mm; mesh size 20mm, 25mm, 30mm, 38mm, 51mm, 76mm.
Thanks to its super flexibility, stainless steel rope mesh is suitable for the design of various cage shapes, with easy shaping, free of maintenance and convenient installation. It’s beautiful, close to nature, with good ventilation. It seems invisible when used for bird cages with large areas, providing a free-living environment for birds.

Primates enclosure fence

Stainless steel rope mesh is used for monkey enclosure fence and gorillas fence mesh.
Common specifications: rope diameter 1.6mm, 2.0mm, 2.4mm, 3.2mm; mesh size 38mm, 51mm, 60mm, 76mm, 90mm.
Monkeys love climbing; stainless steel wire rope mesh has strong tensile strength and is elastic, easy for climbing.
The stainless steel monkey enclosure mesh provides a wide activity space for them. The zoo mesh’s smooth surface can protect their fur from being damaged.
For large primates like gorillas, 24mm rope diameter provides a tensile strength as high as 4.18KN; the flexible and elastic contact surface can well protect the safety of animals as well as tourists.

Other Zoo Meshes

Stainless steel rope mesh is used for other animal sites of the zoo meshes.
Such as tiger cage, lion enclosure fence, leopard fence, deer enclosure mesh, fox exhibit protective, etc.
Common specifications: rope diameter 2.0mm, 2.4mm, 3.2mm; mesh size 38mm, 51mm, 60mm, 76mm, 90mm.
High-quality raw materials and customized rope diameter and mesh size can separate animals effectively and safeguard tourist safety.
The customized mesh can make the cage flexible in shape and impregnable. Small animals can get closer to tourists in the mesh while it is safer to keep large fierce animals in the mesh. In whichever case, stainless steel rope mesh can provide excellent ventilation, the angle of viewing and maintenance free property.

Multifunctional Nets

Because stainless steel rope mesh has good flexibility, great tensile strength, long service life, rust resistance, and beautiful appearance.
Therefore, the stainless steel rope mesh is widely applied in various protection sites, such as stadium fence, decoration net, stair protection net, plant climbing netting, and surface cover mesh, etc.
The flexible stainless steel netting is not restricted by terrain and shape design; customized specifications and mesh panel sizes, it can cover large areas with whole pieces, firm and beautiful, so we also call it multifunctional nets.

About Service & Ordering


  1. Free Sample:
    A sample of less than 1 feet square cable mesh is provided free of charge. The requestor needs to incur the courier charges.
  2. Custom Specification
    1. Raw Material: Either AISI 316 or AISI 304.
    2. Panel Size: Our standard size is 8 meter x 8 meter. Upon request, we will manufacture the wire rope netting according to specification.
    3. Wire Rope Diameter: Ranging from 1.2mm, 1.6mm, 2.0mm, 2.4 mm, and 3.2mm.
    4. Apertures: Standard apertures are from 102mm x 102mm, 90mm x 90mm, 76mm x 76mm, 60mm x 60mm, 51mm x 51mm, 38mm x 38mm, 25mm x 25mm, 20mm x 20mm.
      For more information, please refer to the Product Specifications Form.
    5. Color: natural, black, bronze.
    6. If there are any special requirements for the apertures not shown above, please feel free to contact us.
  3. The size of wire cable mesh panels roll
    The size of the bulk roll varies depending on the size of the stainless steel cable mesh ordered.

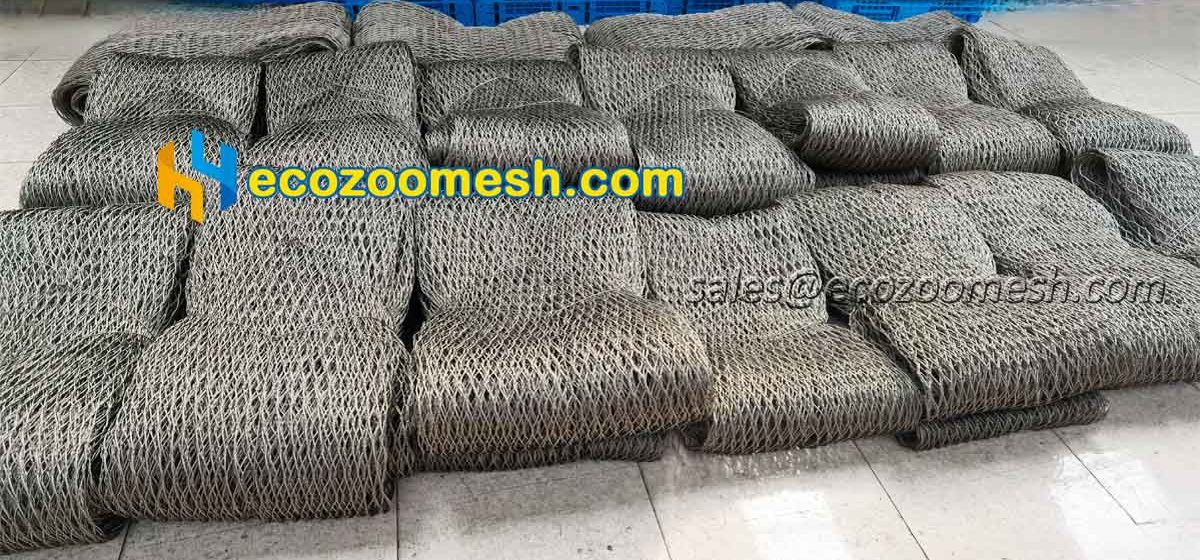

  4. Packaging
    The stainless steel cable mesh will be rolled and packed into the P.P. woven bags.
  5. Lead time
    The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
  6. Convenient and fast installation
    With customized sizes, the wire mesh panels and frames are compatible, easy for installation. Our detailed installation guidance will facilitate a worry-free installation for you.

For more references:

PAGE1•Weight Per Unit of Stainless steel cable mesh

PAGE2•How to choose the mesh aperture?

PAGE3•How to determine the rope diameter of the cable mesh?

PAGE4•Differences between stainless steel woven mesh and ferrule mesh?




Details Gallery of Stainless steel wire rope mesh






How to place an order


  1. Contact us. Confirm the raw materials according to the application environment. 304 stainless steel is suitable for most cases; 316 stainless steel is better in corrosion-resistant and suitable for oceanic climate.
  2. Recommend the specifications and sizes to you, and give you the most reasonable proposal according to the application purpose.
    1. Quote the prices of wire mesh, delivery time, and shipment method, etc.
    2. Before placing an order, a free sample of a selected specification is available to you. The sample quality is the same as stainless steel zoo mesh that you ordered.
    3. Confirm the order and make the down payment.
    4. Schedule the production plan.
    5. After production is completed, you can come to inspect the products; then we will demand the balance and arrange shipment according to your requirement.
    6. 7*24 hours after-sales consultation.
    7. Regular post-sales contacts. Your suggestions are welcome and will be helpful for us to enhance our products and services.

    If you have any doubt or suggestion, please contact us anytime! We will reply to you immediately.
