Stainless Steel Wire Rope Mesh Details
Quick Details：
Place of Origin: China (Mainland)
Brand Name: Hengyi
Product ID: HY1260
Type: Rope Mesh
Material: AISI 304/316 Steel
Rope diameter: 1.2mm (3/64")
Rope structure: 7*7 cores
Mesh aperture: 60mm (2.4 " x 2.4 ")
Technology: Hand woven
Color: Narural/ Black/Bronze
Panel (Length × Width): Customized
Application: Enclosure fence
Wire Rope Mesh For Protection System:
● Pure hand-woven
● Light weight but strong and durable
● Tensile strength, breaking strong
● Flexible, soft, corrosion-resistant, no rust, maintenance-free, long service life
● Beautiful, good sight, pollution-free, environmentally friendly
● Wide range of applications, can be installed without restrictions on the shape
● Suitable for all kinds of environments
● Customized products
Natural state & Installation Finished State -stainless steel wire rope mesh
Mesh aperture:
● Mesh aperture is the mesh hole size, is the distance from knot center to knot center.
● Stainless steel wire mesh is pure hand-woven, so it also be called as hand woven stainless steel wire rope mesh or stainless steel rope braid mesh. Every knotting crossing twice by hand, ensure the hole never variant.
● Hand woven stainless steel netting mesh aperture is diverse, the mesh HY1260 — mesh aperture is 2.4" x2.4" (60mmx60mm).
● We accept custom mesh size, whether so large, so small, our steel wire rope mesh can be very suit your design.
Wire rope diameter of HY1260:
● The wire rope diameter is 3/64"(1.2mm)
● The wire rope structure is 7 x 7
● The Min.breaking load (KN) is 1.2KN
Material:
● Hand-woven stainless steel mesh choose high quality stainless steel wire rope, material have AISI304 and AISI316;
● In general, the material AISI 304 is the main material, can meet the needs of most areas, and the AISI316 material mainly used for wet environment, like seaside.
Product applications:
The application of stainless steel wire rope mesh HY1260 is very wide, due to it has Strong tensile strength and Small mesh aperture characteristic, mainly applies in the small bird cage netting, small animal fence mesh and decorative building protective mesh.

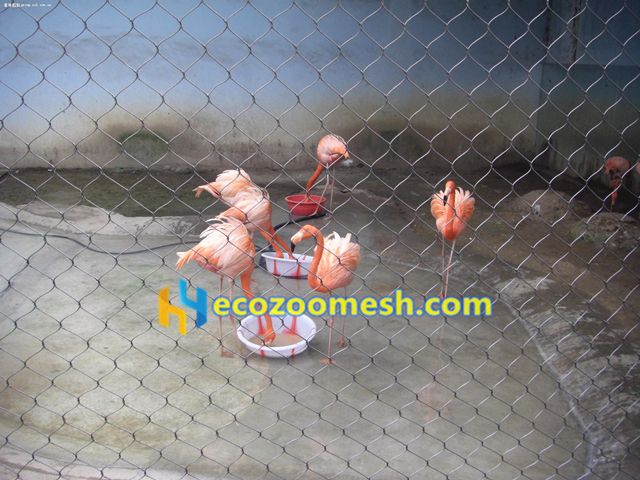

The left case picture is the stainless steel wire rope mesh used for Flamingo fence netting.
Addition, the hand-woven stainless steel netting is also widely used for variety of large birds enclosure fence.
Such as: large bird enclosure fence, bird cage netting, parrot fence mesh, budgerigar cage mesh, budgie exhibit protection netting, love birds fencing, thrush cage fence, Lark cage netting, bird aviary mesh, etc.
