Stainless steel wire rope mesh for Large Birds Aviary Mesh
Stainless steel wire rope mesh is a kind of professional large birds aviary mesh, using 304/316 stainless steel cables, hand-woven, widely used in the zoo.
Suitable for a variety of large birds varieties, such as: Crane, Flamingo, Red-crowned Crane, Peacock, Ostrich, Pheasants and so on.
Stainless steel wire rope mesh has a smooth surface, which not only protects the birds' beautiful feathers, but also makes the cage more beautiful and refined, and its maintenance-free features highlight its economic benefits.
It has very good flexibility, is called as flexible wire rope nets, can be applied to a variety of cage shape design. It's beautiful, eco-friendly, resistant to bite, good ventilation, do not need any maintenance, more than 30 years service life.
Stainless steel wire rope mesh with a good flexibility, protect bird feathers from harm, is applied to a variety of large bird aviary cage shape design. It's beautiful, eco-friendly, resistant to bite, good ventilation, do not need any maintenance, more than 30 years service life.
Reference cases for Large birds aviary mesh
The following is the common various protection schemes and specifications for kinds large birds aviary mesh:
Peacock Aviary Mesh
Specifications: HY1651
Wire rope mesh pacock fencing
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16 ")
Mesh aperture: 51mm x 51mm (2" x 2")
Stainless steel wire rope mesh for peacock enclosure netting is strong and durable, good flexibility, very suitable for variety of peacock exhibition, peacock cage mesh.
See More Details:PROJECT PAGE

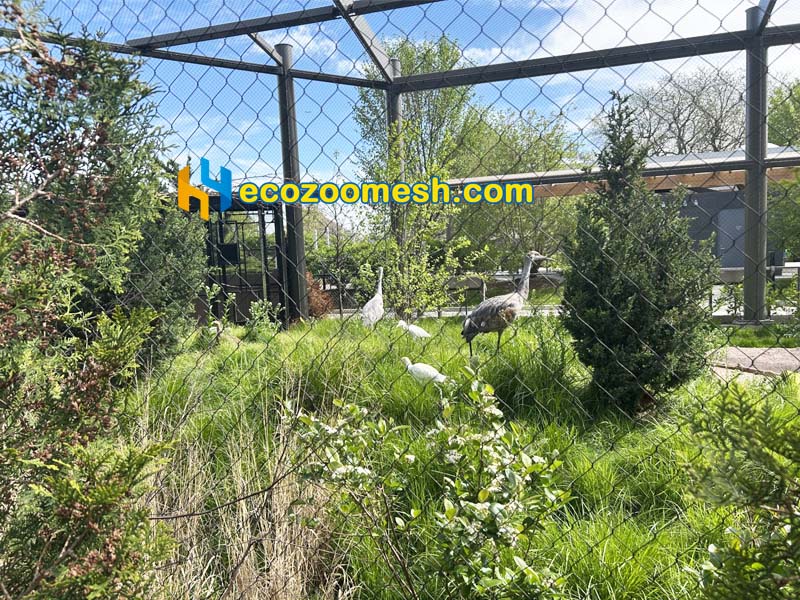

Crane Enclosure Fence Mesh
Specifications: HY1651
Wire rope mesh
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16 ")
Mesh aperture: 51mm x 51mm (2" x 2")
Stainless steel wire rope mesh for crane enclosure fence mesh is strong and durable, complete specifications, good flexibility, very suitable for variety of ostrich exhibition.
See More Details:PROJECT PAGE
Flamingo Fence Netting
Specifications: HY1660
Wire rope mesh flamingo exhibit
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16 ")
Mesh aperture: 60mm x 60mm (2.4" x 2.4")
Stainless steel wire cable mesh for flamingo cage netting, flamingo fence mesh. Flamingos are docile. They need enough space to live and open sight. Flamingo cage fence can be arbitrarily designed. Stainless steel wire rope mesh can be used in various flamingo cage shapes.
See More Details: PROJECT PAGE
Peacock Fence Netting
Specifications: HY1638
Wire rope mesh peacock netting
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16 ")
Mesh aperture: 38mm x 38mm (1.5" x 1.5")
Stainless steel rope mesh for peacock fence netting, peacock cage mesh, peacock enclosure netting.
Peacocks have very showy feathers, as ornamental birds, is the main exhibition animal of many zoos in the world. Peafowl aviary mesh, peacock fencing, with good flexibility and soft, can protect peacock feathers well.
See More Details: PROJECT PAGE
Aviary Mesh, Bird Cage Netting
Specifications: HY2076
Wire rope mesh
Material: 304 stainless steel
Rope diameter: 2.0mm (5/64 ")
Mesh aperture: 76mm x 76mm (3" x 3 ")
Stainless steel wire rope netting for aviary mesh.
Corrosion-resistant, no rust,, can cover the entire aviary cage. Stainless steel wire mesh's beautiful appearance and birds is a very good collocation.
See More Details: PROJECT PAGE
Pheasants Cage Netting
Specifications: HY1651
Peafowl Aviary Mesh
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16 ")
Mesh aperture: 51mm x 51mm (2" x 2 ")
Stainless steel rope nets for pheasants cage netting, Pheasants protection netting.
Pheasant is a very common animal, similar varieties have red-pheasant, white-pheasant, turkey and so on. Pheasant cage nets construction are simple, stainless steel wire mesh for pheasant fence is a good choice.
Emu Protective Fence
Specifications: HY1651
Wire rope mesh
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16 ")
Mesh aperture: 51mm x 51mm (2" x 2")
Stainless steel wire rope mesh for ostrich enclosure mesh, ostrich fence, ostrich cage netting, ostrich protection fence mesh material.
See More Details: PROJECT PAGE
Red-crowned Crane Fence Netting
Specifications: HY2076
Wire rope mesh crane caging
Material: 304 stainless steel
Rope diameter: 2.0mm (5/64 ")
Mesh aperture: 76mm x 76mm (3" x 3 ")
Stainless steel zoo mesh for red-crowned crane fence netting. Wire rope mesh aviary is also suitable for many other kinds of large birds as peafowl pens fence, peafowl cages.
See More Details: PROJECT PAGE
Bird Aviary Wire Mesh, Crane Fence Netting
Specifications: HY1651
Wire rope mesh
Material: 304 stainless steel
Rope diameter: 1.6mm (1/16")
Mesh aperture: 51mm x 51mm (2" x 2")
Stainless steel zoo mesh for large bird aviary wire mesh, crane enclosure material. Building a peacock aviary is also a good option.
See More Details: PROJECT PAGEIn general, the size of bird determines the size of mesh aperture, the degree of bird's damage determines the wire rope diameter, and the specific specification need to be selected according to the actual birds.
In addition, we also have the following stainless steel rope mesh product specifications suitable application for large bird aviary mesh and heavy-duty wire cage enclosure.
Specifications for Large birds aviary mesh
Rope diameter, material and mesh aperture size can all be customized. We will produce according to your requirements.
We use SUS304/316 stainless steel, which has strong corrosion resistance and tensile strength. The rope is made with multiple cores twisted together, the structure is: 7*7 cores (rope diameter 1.2mm, 1.6mm, 2.0mm, 2.4mm) and 7*19 cores (rope diameter 3.2mm). The wire rope is smooth, protecting the fur from being damaged.
We provide the regular specifications for your reference.
| Product ID | Rope Diameter | Aperture | Rope Diameter | Aperture | Unit Weight | Unit Weight | Wire Rope Structure | Tensile Strength | Wire Diameter | Min.Breaking Load |
|---|---|---|---|---|---|---|---|---|---|---|
| HY1215 | 1.2(mm) | 15 x 15 (mm) | 3/64"(Inch) | 0.6" x 0.6"(Inch) | 0.92(kg/m²) | 0.085(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1220 | 1.2(mm) | 20 x 20 (mm) | 3/64"(Inch) | 0.8" x 0.8"(Inch) | 0.7(kg/m²) | 0.065(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1225 | 1.2(mm) | 25.4 x 25.4 (mm) | 3/64"(Inch) | 1" x 1"(Inch) | 0.53(kg/m²) | 0.049(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1230 | 1.2(mm) | 30 x 30 (mm) | 3/64"(Inch) | 1.2" x 1.2"(Inch) | 0.45(kg/m²) | 0.042(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1238 | 1.2(mm) | 38 x 38 (mm) | 3/64"(Inch) | 1.5" x 1.5"(Inch) | 0.37(kg/m²) | 0.034(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1251 | 1.2(mm) | 51 x 51 (mm) | 3/64"(Inch) | 2" x 2"(Inch) | 0.26(kg/m²) | 0.024(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1260 | 1.2(mm) | 60 x 60 (mm) | 3/64"(Inch) | 2.4" x 2.4"(Inch) | 0.23(kg/m²) | 0.021(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1276 | 1.2(mm) | 76 x 76 (mm) | 3/64"(Inch) | 3" x 3"(Inch) | 0.19(kg/m²) | 0.018(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1290 | 1.2(mm) | 90 x 90 (mm) | 3/64"(Inch) | 3.6" x 3.6"(Inch) | 0.17(kg/m²) | 0.016(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY12102 | 1.2(mm) | 102 x 102(mm) | 3/64"(Inch) | 4" x 4"(Inch) | 0.15(kg/m²) | 0.014(kg/sq.ft) | 7 x 7 | 2030(Mpa) | 0.135 (mm) | 1.2 (KN) |
| HY1625 | 1.6(mm) | 25.4 x 25.4 (mm) | 1/16"(Inch) | 1" x 1"(Inch) | 1(kg/m²) | 0.093(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY1630 | 1.6(mm) | 30 x 30 (mm) | 1/16"(Inch) | 1.2" x 1.2"(Inch) | 0.9(kg/m²) | 0.084(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY1638 | 1.6(mm) | 38 x 38 (mm) | 1/16"(Inch) | 1.5" x 1.5"(Inch) | 0.64(kg/m²) | 0.059(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY1651 | 1.6(mm) | 51 x 51 (mm) | 1/16"(Inch) | 2" x 2"(Inch) | 0.5(kg/m²) | 0.046(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY1660 | 1.6(mm) | 60 x 60(mm) | 1/16"(Inch) | 2.4" x 2.4"(Inch) | 0.45(kg/m²) | 0.042(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY1676 | 1.6(mm) | 76 x 76(mm) | 1/16"(Inch) | 3" x 3"(Inch) | 0.37(kg/m²) | 0.034(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY1690 | 1.6(mm) | 90 x 90(mm) | 1/16"(Inch) | 3.6" x 3.6"(Inch) | 0.32(kg/m²) | 0.03(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY16102 | 1.6(mm) | 102 x 102(mm) | 1/16"(Inch) | 4" x 4"(Inch) | 0.24(kg/m²) | 0.022(kg/sq.ft) | 7 x 7 | 2300(Mpa) | 0.17 (mm) | 2.13 (KN) |
| HY2038 | 2(mm) | 38 x 38(mm) | 5/64"(Inch) | 1.5" x 1.5"(Inch) | 1.03(kg/m²) | 0.096(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY2051 | 2(mm) | 51 x 51(mm) | 5/64"(Inch) | 2" x 2"(Inch) | 0.76(kg/m²) | 0.071(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY2060 | 2(mm) | 60 x 60(mm) | 5/64"(Inch) | 2.4" x 2.4"(Inch) | 0.65(kg/m²) | 0.06(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY2076 | 2(mm) | 76 x 76(mm) | 5/64"(Inch) | 3" x 3"(Inch) | 0.51(kg/m²) | 0.047(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY2090 | 2(mm) | 90 x 90(mm) | 5/64"(Inch) | 3.6" x 3.6"(Inch) | 0.45(kg/m²) | 0.042(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY20102 | 2(mm) | 102 x 102(mm) | 5/64"(Inch) | 4" x 4"(Inch) | 0.4(kg/m²) | 0.037(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY20127 | 2(mm) | 127 x 127(mm) | 5/64"(Inch) | 5" x 5"(Inch) | 0.3(kg/m²) | 0.028(kg/sq.ft) | 7 x 7 | 2080(Mpa) | 0.22 (mm) | 2.94 (KN) |
| HY2451 | 2.4(mm) | 51 x 51(mm) | 3/32"(Inch) | 2" x 2"(Inch) | 1.02(kg/m²) | 0.095(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY2460 | 2.4(mm) | 60 x 60(mm) | 3/32"(Inch) | 2.4" x 2.4"(Inch) | 0.87(kg/m²) | 0.081(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY2476 | 2.4(mm) | 76 x 76(mm) | 3/32"(Inch) | 3" x 3"(Inch) | 0.72(kg/m²) | 0.067(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY2490 | 2.4(mm) | 90 x 90(mm) | 3/32"(Inch) | 3.6" x 3.6"(Inch) | 0.6(kg/m²) | 0.056(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY24102 | 2.4(mm) | 102 x 102(mm) | 3/32"(Inch) | 4" x 4"(Inch) | 0.54(kg/m²) | 0.05(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY24127 | 2.4(mm) | 127 x 127(mm) | 3/32"(Inch) | 5" x 5"(Inch) | 0.42(kg/m²) | 0.039(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY24152 | 2.4(mm) | 152 x 152(mm) | 3/32"(Inch) | 6" x 6"(Inch) | 0.35(kg/m²) | 0.033(kg/sq.ft) | 7 x 7 | 1860(Mpa) | 0.26 (mm) | 4.1 (KN) |
| HY3251 | 3.2(mm) | 51 x 51(mm) | 1/8"(Inch) | 2" x 2"(Inch) | 1.95(kg/m²) | 0.181(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY3260 | 3.2(mm) | 60 x 60(mm) | 1/8"(Inch) | 2.4" x 2.4"(Inch) | 1.65(kg/m²) | 0.153(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY3276 | 3.2(mm) | 76 x 76(mm) | 1/8"(Inch) | 3" x 3"(Inch) | 1.28(kg/m²) | 0.119(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY3290 | 3.2(mm) | 90 x 90(mm) | 1/8"(Inch) | 3.6" x 3.6"(Inch) | 1.1(kg/m²) | 0.102(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY32102 | 3.2(mm) | 102 x 102(mm) | 1/8"(Inch) | 4" x 4"(Inch) | 0.9(kg/m²) | 0.084(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY32127 | 3.2(mm) | 127 x 127(mm) | 1/8"(Inch) | 5" x 5"(Inch) | 0.7(kg/m²) | 0.065(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY32152 | 3.2(mm) | 152 x 152(mm) | 1/8"(Inch) | 6" x 6"(Inch) | 0.61(kg/m²) | 0.057(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY32203 | 3.2(mm) | 203 x 203(mm) | 1/8"(Inch) | 8" x 8"(Inch) | 0.43(kg/m²) | 0.04(kg/sq.ft) | 7 x 19 | 1920(Mpa) | 0.21 (mm) | 7.82 (KN) |
| HY4076 | 4(mm) | 76 x 76(mm) | 5/32"(Inch) | 3" x 3"(Inch) | 1.9(kg/m²) | 0.177(kg/sq.ft) | 7 x 19 | 1880(Mpa) | 0.24 (mm) | 10.2 (KN) |
| HY4090 | 4(mm) | 90 x 90(mm) | 5/32"(Inch) | 3.6" x 3.6"(Inch) | 1.7(kg/m²) | 0.158(kg/sq.ft) | 7 x 19 | 1880(Mpa) | 0.24 (mm) | 10.2 (KN) |
| HY40102 | 4(mm) | 102 x 102(mm) | 5/32"(Inch) | 4" x 4"(Inch) | 1.5(kg/m²) | 0.139(kg/sq.ft) | 7 x 19 | 1880(Mpa) | 0.24 (mm) | 10.2 (KN) |
| HY40127 | 4(mm) | 127 x 127(mm) | 5/32"(Inch) | 5" x 5"(Inch) | 1.15(kg/m²) | 0.107(kg/sq.ft) | 7 x 19 | 1880(Mpa) | 0.24 (mm) | 10.2 (KN) |
| HY40152 | 4(mm) | 152 x 152(mm) | 5/32"(Inch) | 6" x 6"(Inch) | 1(kg/m²) | 0.093(kg/sq.ft) | 7 x 19 | 1880(Mpa) | 0.24 (mm) | 10.2 (KN) |
| HY40203 | 4(mm) | 203 x 203(mm) | 5/32"(Inch) | 8" x 8"(Inch) | 0.75(kg/m²) | 0.07(kg/sq.ft) | 7 x 19 | 1880(Mpa) | 0.24 (mm) | 10.2 (KN) |
